A245

Name: Axis A245
Brand: Axis

The largest A-Series: a forked bow lounge and room for a big crew.

Enquire Build yours on axiswake.com

Model year 2027

Length: 7.45 m; 24′ 5″
Capacity: 18; people
Max ballast: 2,390 kg; 5,270 lb

On the water

Axis names these systems on its page for the A245. What a particular boat carries depends on its specification, so ask us about the one you have in mind.

Surf Gate
Two hydraulic gates sit at the stern, one on each side. Choose a side and the gates reshape the flow to build a clean surf wave there, so nobody has to move across the boat to switch sides.
Power Wedge III
A hydraulic hydrofoil at the transom that lowers the stern into the water in steps. It changes the height, length and push of the wave and works as extra ballast without adding real weight. When the cruise speed is set above surf speed, it moves into a lift mode that reduces drag and helps the hull get up on the plane.
Surf Band
A waterproof wrist unit for the rider. From the water behind the boat, the rider can switch the wave from one side to the other, step the wedge up or down, nudge the boat speed and change the tower speaker volume. It floats if it is dropped.
Wake Plus Hull
The hull shape Axis developed for wakeboarding and wakesurfing. It is tuned to give consistent wakes and waves and steady handling across different water conditions.

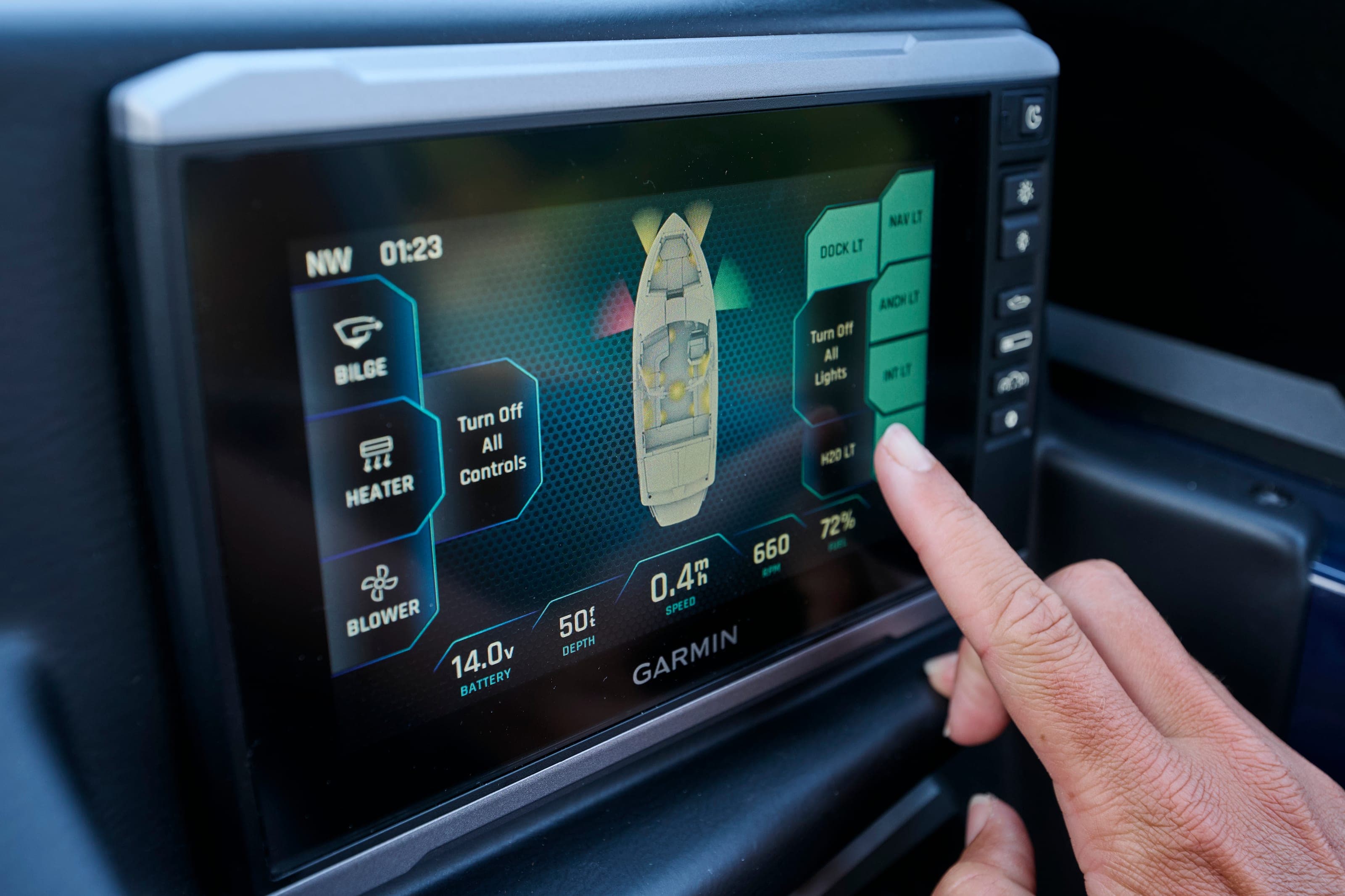

Axis Dash
The Axis helm: a touchscreen with factory-loaded rider presets for wakeboarding, wakesurfing and foiling, plus surf controls, ballast, cruise control and audio. A Go Home preset resets Surf Gate, stows the wedge and drains the ballast for loading.
